What is the difference between axial flow fans and centrifugal fans?

When selecting a fan for a specific application, it is essential to understand the fundamental differences between axial flow fans and centrifugal fans.

Definition and Basic Design

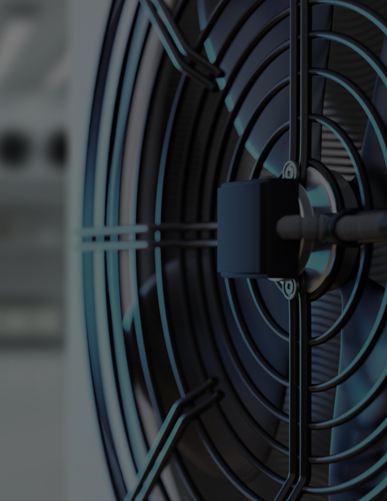

An axial flow fan is characterized by its airflow pattern. The air enters the impeller and is directly expelled through the outlet in the same axial direction. This design results in a higher axial speed compared to the radial speed, making it highly efficient for moving large volumes of air over relatively short distances. The impeller of an axial flow fan is typically mounted on a central shaft, and its blades are designed to push air parallel to the axis of rotation.

In contrast, a centrifugal fan, also known as an impeller centrifugal fan, operates based on centrifugal force. When the impeller rotates, it throws the air outward, creating a negative pressure within the fan housing. This negative pressure draws more air into the system, which is then expelled through the outlet. The unique spiral-shaped housing, or volute, of a centrifugal fan helps to collect and direct the air, allowing it to generate higher pressure and handle more complex airflow patterns.

Working Principle

The working principle of an axial flow fan is relatively straightforward. Once the fan is activated, air is drawn into the impeller and pushed out along the axis of rotation. The blades of the impeller are designed to compress the air slightly while maintaining a high flow rate. This makes axial flow fans particularly efficient for applications requiring a large volume of air movement, such as ventilation systems or cooling applications.

On the other hand, a centrifugal fan relies on centrifugal force to move air. As the impeller rotates, air is drawn into the center and flung outward due to centrifugal force. The air is then collected in the volute and expelled through the outlet. This process not only moves the air but also increases its pressure, making centrifugal fans ideal for applications where higher pressure is required, such as in HVAC systems or industrial processes that require precise air distribution.

Installation and Use

The installation process for an axial flow fan is generally simpler and more flexible compared to a centrifugal fan. Axial flow fans can be mounted in various orientations, including horizontally, vertically, or wall-mounted, depending on the specific requirements of the installation site. Their compact design and lightweight construction make them easy to install and maintain, even in tight spaces.

In contrast, centrifugal fans often require more complex installation procedures. Due to their larger size and more intricate design, they typically need to be installed by professionals who have experience with HVAC systems and industrial ventilation equipment. Additionally, centrifugal fans often require specialized mounting equipment and careful alignment to ensure good performance and safety.

Applicable Places

Axial flow fans are commonly used in applications where a large volume of air needs to be moved quickly but where high pressure is not a primary concern. They are often found in workshops, offices, and other environments where ventilation is required to maintain air quality and comfort. Axial flow fans are also frequently used in cooling systems, such as in computer servers or industrial machinery, where the goal is to dissipate heat quickly.

Centrifugal fans, on the other hand, are better suited for applications that require higher pressure and more precise air distribution. They are commonly used in high-rise buildings for smoke exhaust systems, in industrial plants for ventilation and material handling, and in central air conditioning systems. The ability of centrifugal fans to generate higher pressure makes them ideal for overcoming resistance in ductwork and ensuring that air is delivered efficiently to all parts of a building or facility.

Axial flow fans and centrifugal fans each have their unique strengths and weaknesses, making them suitable for different applications. Axial flow fans are ideal for situations where a large volume of air needs to be moved quickly and efficiently, while centrifugal fans are better suited for applications that require higher pressure and more precise air distribution. The choice between the two types of fans ultimately depends on the specific requirements of the application, including the volume and pressure of air needed, the available space for installation, and the overall system design.
